IW4pro-C110 5.1 In-Ceiling Home Theater System
Product Bundles · IW4pro-C110 5.1Book a demo
Specifications
| Driver | 1 × 2.75" Driver |
|---|---|
| Frequency Response | 50Hz–20kHz (-10dB) |
| Input Power | 200W |
| Sensitivity | 89dB/W/m |
| Average Max SPL (@1m) | 110dB |
| Input Impedance | 8Ω |
| Terminals | Press-type Terminal Block |
| Dimensions | Ø120 × 104mm (Diameter × Depth) |
| Cutout Size | 110mm，安装深度 > 105mm |
| Net Weight | 0.8kg (per Unit) |
| System | 5.1 In-Ceiling Home Cinema |
| Driver Unit | 2.75-inch Coaxial Speaker |
| Output Power | 200W Per Channel |
| Subwoofers | C110 500W |
| Max SPL | 110dB |
| Technology | Patented Guided-Wave Technology |
| Applications | Living Room Cinema |
| Type | 5.1 In-Ceiling Cinema |
| Power | 200W 110dB |

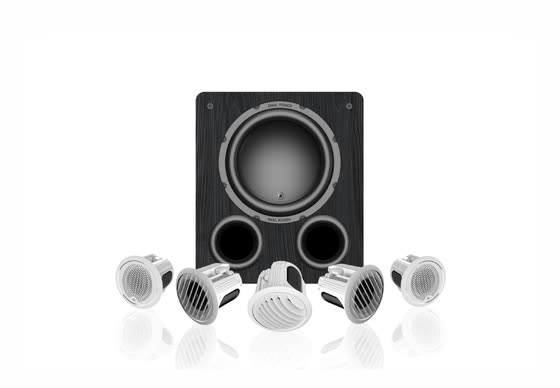

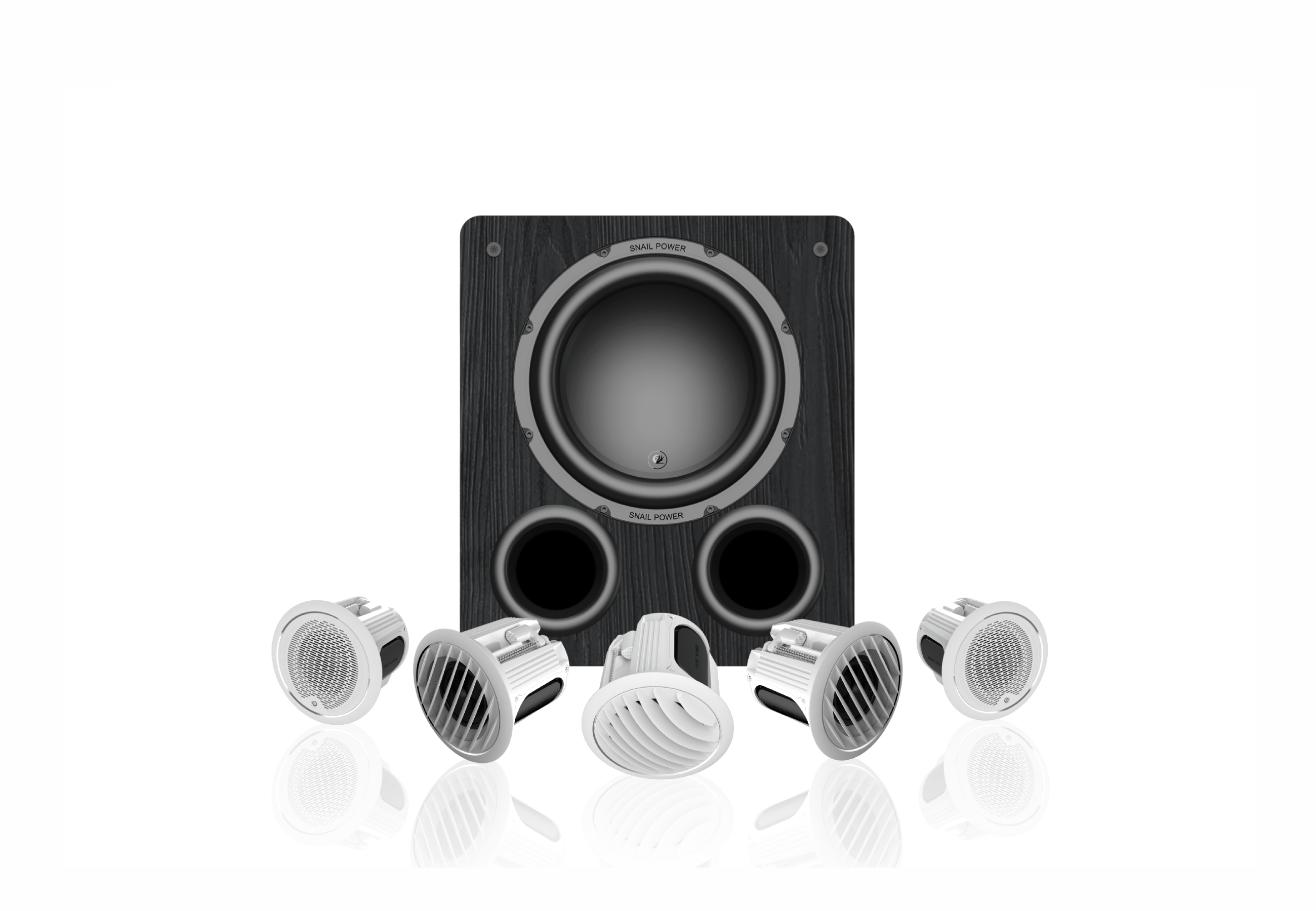

IW4pro-C110: a 5.1 in-ceiling home theater system pairing Snail Power IW4pro waveguide invisible speakers (LCR x 3 + surround x 2) with a C110 500W powered subwoofer — 200W and 110dB per unit, delivering both cinema and music.
Downloads for this model
- IW4pro 7.1 System User Manual (English)2026-05-20 · 5.4 MB
- IW4pro 7.1 System User Manual (Chinese)24.5 MB
- C110 Powered Subwoofer User Manual (Chinese)3.7 MB

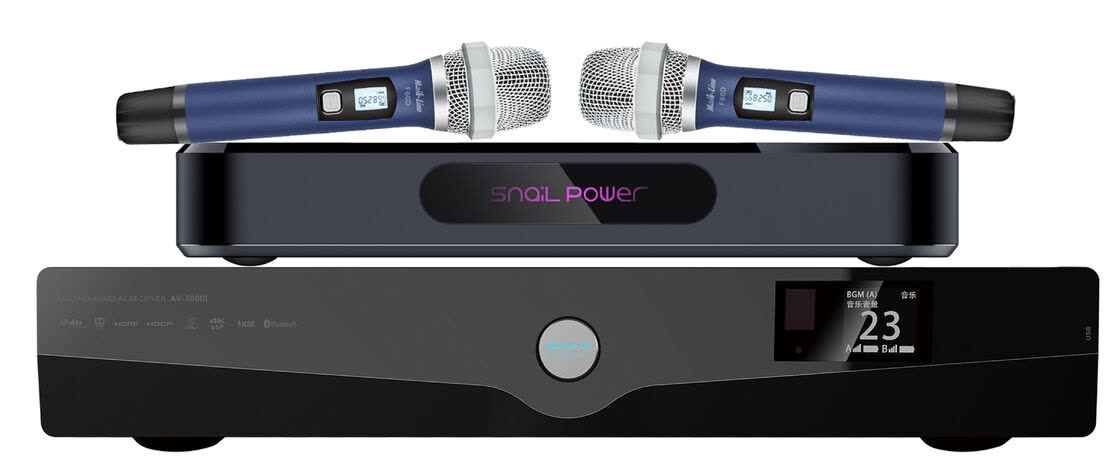

- AV-700 III Cinema/KTV All-in-One AV Amplifier User Manual (English)2026-05-19 · 5.8 MB
- AV-700 III Cinema/KTV All-in-One AV Amplifier User Manual (Chinese)18.0 MB
- F60D Wireless Microphone User Manual (Chinese)3.5 MB
Sound Quality Performance
IW4pro 搭载蜗牛第 4 代 2.75 英寸旗舰单元架构，专为影院与音乐而生 —— 单只 200W、110dB，世界级的声音触手可及。
The IW4pro features Snail's 4th-generation 2.75-inch flagship driver architecture, engineered for cinema and music — 200W per channel at 110dB.
Drive System and Output Capability
大功率辐射器技术显著增强低频能量并延伸下潜深度；配合 C110 500W 低音炮，影院低频深潜有力。
High-power radiator technology enhances bass energy and extends depth; the C110 500W subwoofer delivers deep cinema bass.
Core Algorithm Technology
第 4 代核心算法与 IW 架构，输出高达 200W、最大连续声压 110dB —— 高保真还原、极稳表现。
4th-Generation Core Algorithm with IW architecture delivers up to 200W and 110dB maximum continuous output.
Design Aesthetics
铝质外壳把导波器与钢网罩合为一体，质感现代、线条干净，融入任何室内风格。
The aluminium housing pairs a waveguide with a steel-mesh grille for a clean, modern look.
Unique Technology
专利导波技术让声音「会转弯」，隐藏安装的同时实现身临其境的包围感。
Patented Guided-Wave Technology bends sound around the room for immersive surround from concealed installation.
Versatile Applications
导波技术配超薄箱体解决隐藏式安装难题 —— 影院、KTV 与室内设计整合成完整方案。
Waveguide technology and a compact enclosure solve concealed installation for a complete home-entertainment solution.
