Mini-B28 5.1 In-Ceiling Home Theater System
Product BundlesBook a demo
Specifications
| Functions | Cinema, KTV, Music |
|---|---|
| Driver | 1 × 2.25" Driver |
| Frequency Response | 50Hz–20kHz (In-wall Installation) |
| Input Power | 20–160W |
| Sensitivity | 86dB/W/m |
| Average Max SPL (@1m) | 111dB |
| Input Impedance | 8Ω |
| Terminals | Binding Post |
| Dimensions | Ø91 × 82mm (Diameter × Depth) |
| Net Weight | 0.5kg (per Unit) |
| System | 5.1 In-Ceiling Home Cinema |
| Driver Unit | 2.25-inch Coaxial Speaker |
| Output Power | 160W Per Channel |
| Subwoofers | B28 Dual 8-inch 400W |
| Technology | Patented Guided-Wave Technology |
| Applications | Living Room, Villa |
| Type | 5.1 In-Ceiling Home Cinema |
| Power | 160W Speaker 400W Subwoofer |
| Installation | Concealed Ceiling Install |

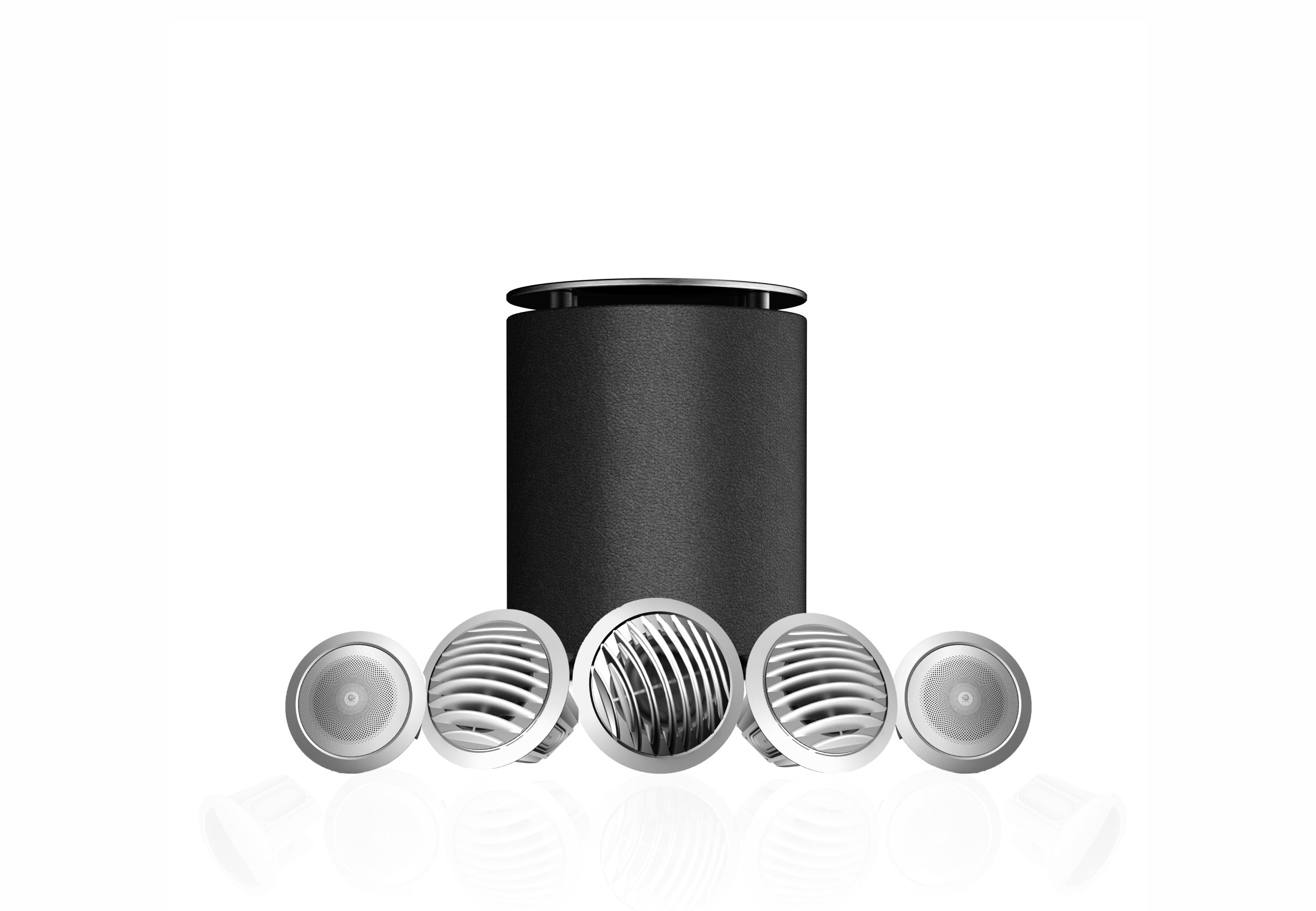

Mini-B28: Snail Power's smallest 5.1 home theater system — five 8cm ultra-slim in-ceiling waveguide speakers plus a 400W powered subwoofer, combining cinema, KTV and music in one.
Downloads for this model
- Mini Speaker User Manual (Chinese)7.5 MB
- MINI Speaker User Manual (Chinese)6.8 MB
- B28 Powered Subwoofer User Manual (English)5.9 MB
- B28 Powered Subwoofer User Manual (Chinese)5.6 MB

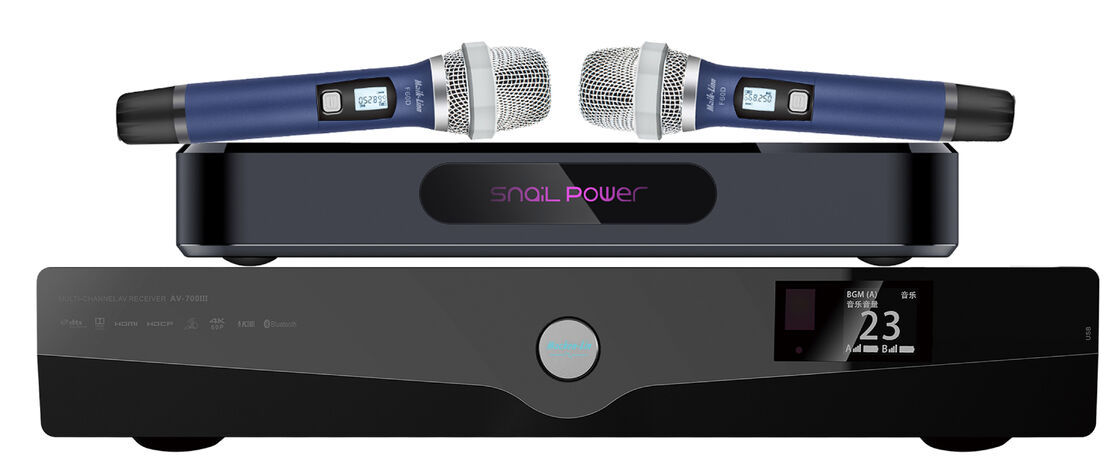

- AV-700 III Cinema/KTV All-in-One AV Amplifier User Manual (English)2026-05-19 · 5.8 MB
- AV-700 III Cinema/KTV All-in-One AV Amplifier User Manual (Chinese)18.0 MB
- F60D Wireless Microphone User Manual (Chinese)3.5 MB

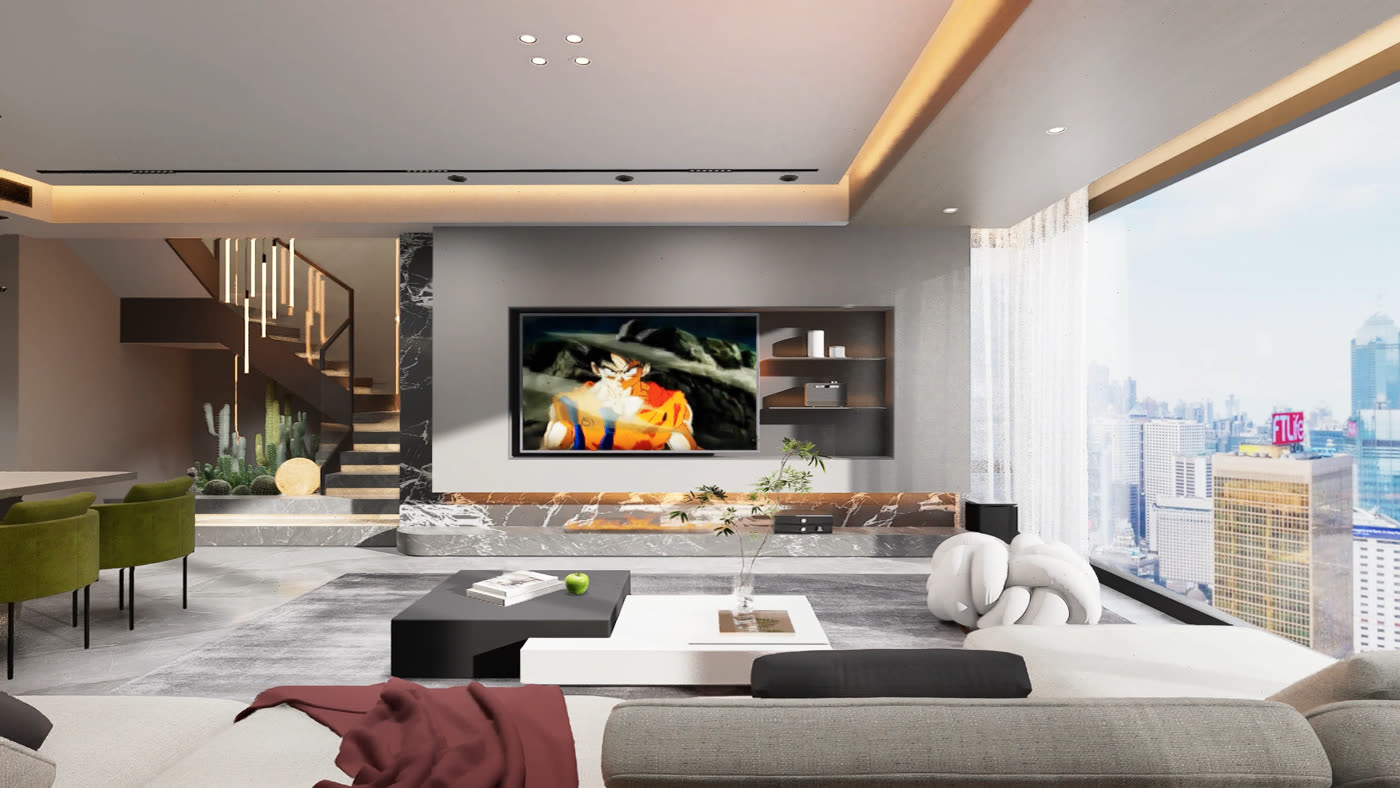

Sound Quality Performance
Mini 搭载蜗牛第 4 代 2.25 英寸旗舰单元架构，专为影院与音乐而生，只有一个目标：最纯净的声音。精心的声学设计与工艺优化，让影院的力量与音乐的保真度达到完美平衡 —— 世界级的声音，触手可及。
Mini uses Snail Power's 4th-Generation 2.25-inch premium driver architecture, engineered specifically for cinema and music, it is driven by a single goal: the purest possible sound. Careful acoustic design and process optimisation bring cinematic power and musical fidelity together in perfect balance. The result brings world-class sound within easy reach of any listener.

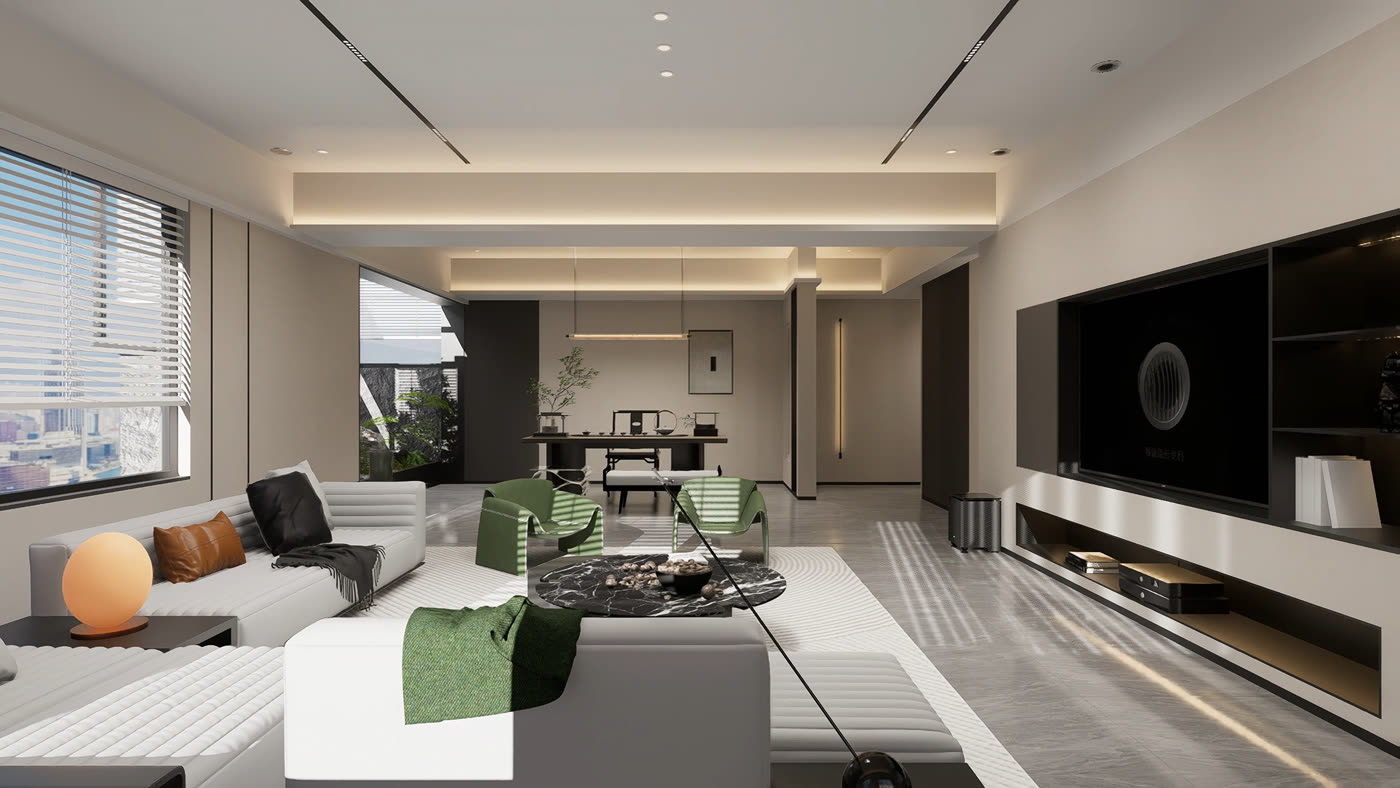

Drive System and Output Capability
采用大功率辐射器技术，显著提升低频能量，同时把低频下潜延伸到更深处。实测吊顶安装时，系统仍能在 60Hz 以下输出可用低频 —— 对这个体积而言是惊人的低频实力，带来身临其境的现场感与真实的身体冲击。
By adopting high-power radiator technology, it significantly boosts bass energy while extending low-frequency response to greater depths. In testing, the system produced usable output below 60Hz when ceiling-mounted — remarkable low-end power for its size. The result is an immersive, live-venue feel with real physical impact.
Core Algorithm
搭载蜗牛第 4 代核心算法与 IW 架构，单只可输出 160W，最大连续声压 111dB —— 充足的余量带来高保真还原与极稳的表现，细节清楚、不失真。
Powered by Snail Power's 4th-Generation Core Algorithm and the advanced IW architecture, it delivers up to 160W with a maximum continuous output of 111dB.
Design Aesthetics
Mini 的铝质外壳把导波器与钢网罩合为一体，质感现代、线条干净，既能融进现代住宅，也适配高端商业空间。
The Mini's aluminium housing pairs a waveguide with a steel-mesh grille for a look that suits any room.
Unique Technology
8cm 孔径、8cm 深度 —— 目前世界上最小的影院系统之一，几乎适配所有家装场景；安装省事，也让它的适用面大幅变宽。
Boasting an ultra-compact 8cm aperture and 8cm depth, it is the world's smallest cinema system.
Versatile Applications
导波技术配超薄箱体，解决了隐藏式安装的难题 —— 把影院、卡拉OK 与室内设计、灯光、智能家居整合成一套完整的家庭娱乐方案。
By pairing waveguide technology with a compact footprint, this living-room home theatre system solves the challenge of concealed installation.

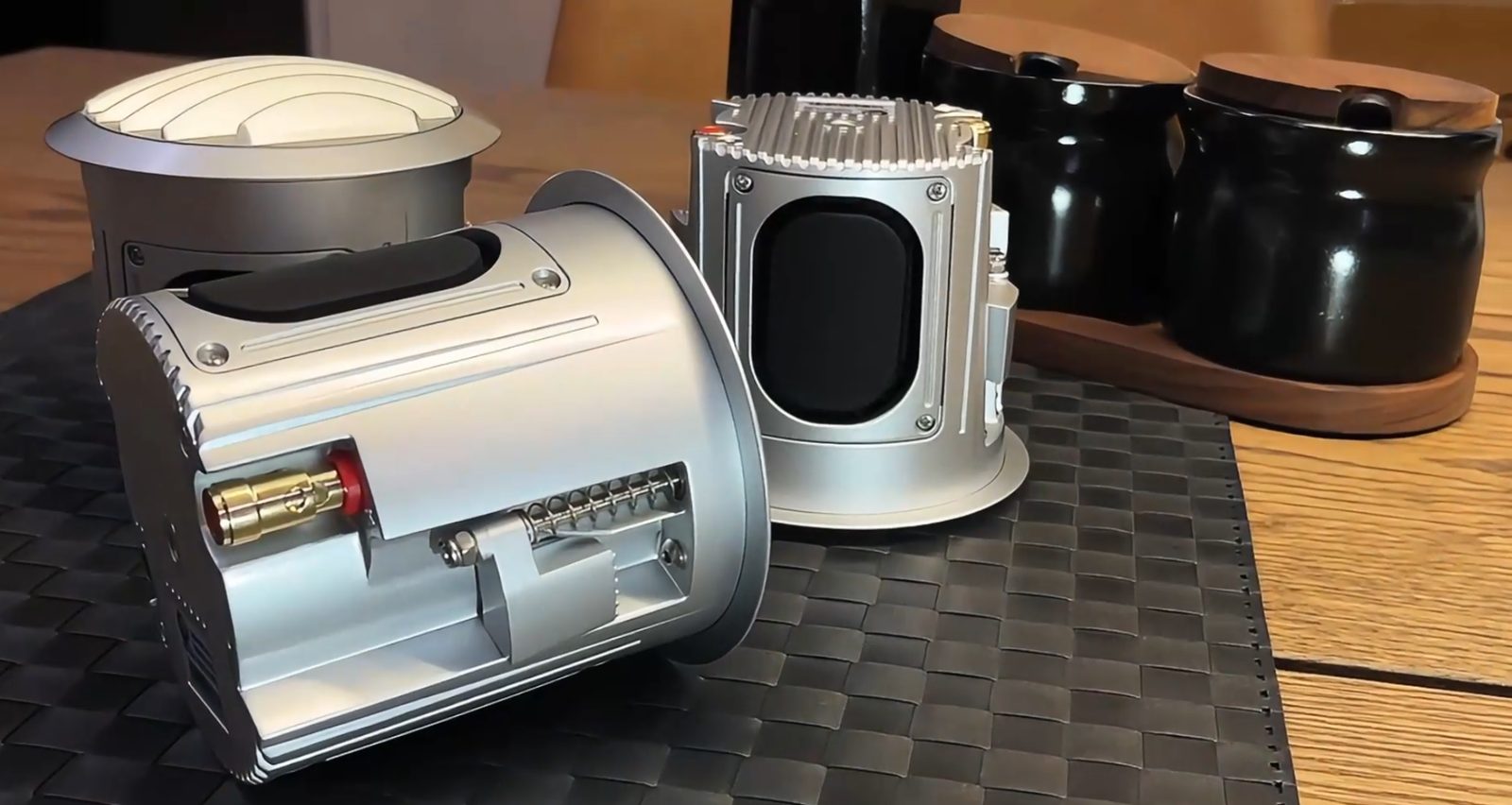

Flexible Combination
Mini 可与 B28、C110、S10D 组合，凭借独特设计与多种功率配置，按客厅的风格与功能需求灵活搭配。
The Mini, when paired with the B28, C110, and S10D, delivers versatile solutions through its distinct design and multi-wattage configurations.
