IW3max-S10D 5.1 In-Ceiling Home Theater System
Product Bundles · IW3max-S10D 5.1Book a demo
Specifications
| Functions | Deep Bass Cinematic Impact |
|---|---|
| Driver | 1 × 2.5" Driver |
| Frequency Response | 50Hz–20kHz (-10dB) |
| Input Power | 20-180W |
| Sensitivity | 88dB/W/m |
| Average Max SPL (@1m) | 110dB |
| Input Impedance | 8Ω |
| Terminals | Press-type Terminal Block |
| Dimensions | Ø100× 67mm (Diameter × Depth) |
| Cutout Size | 85mm，安装深度 > 70mm |
| Net Weight | 0.5kg (per Unit) |
| System | 5.1 Ultra-Thin Home Cinema |
| Driver Unit | 2.5-inch Coaxial Speaker |
| Output Power | 180W Per Channel |
| Subwoofers | S10D 1000W Dual 10-inch |
| Thickness | 7cm Concealed In-Ceiling |
| Technology | Patented Guided-Wave Technology |
| Type | 5.1 Ultra-Thin Home Cinema |
| Power | 180W Per Channel |

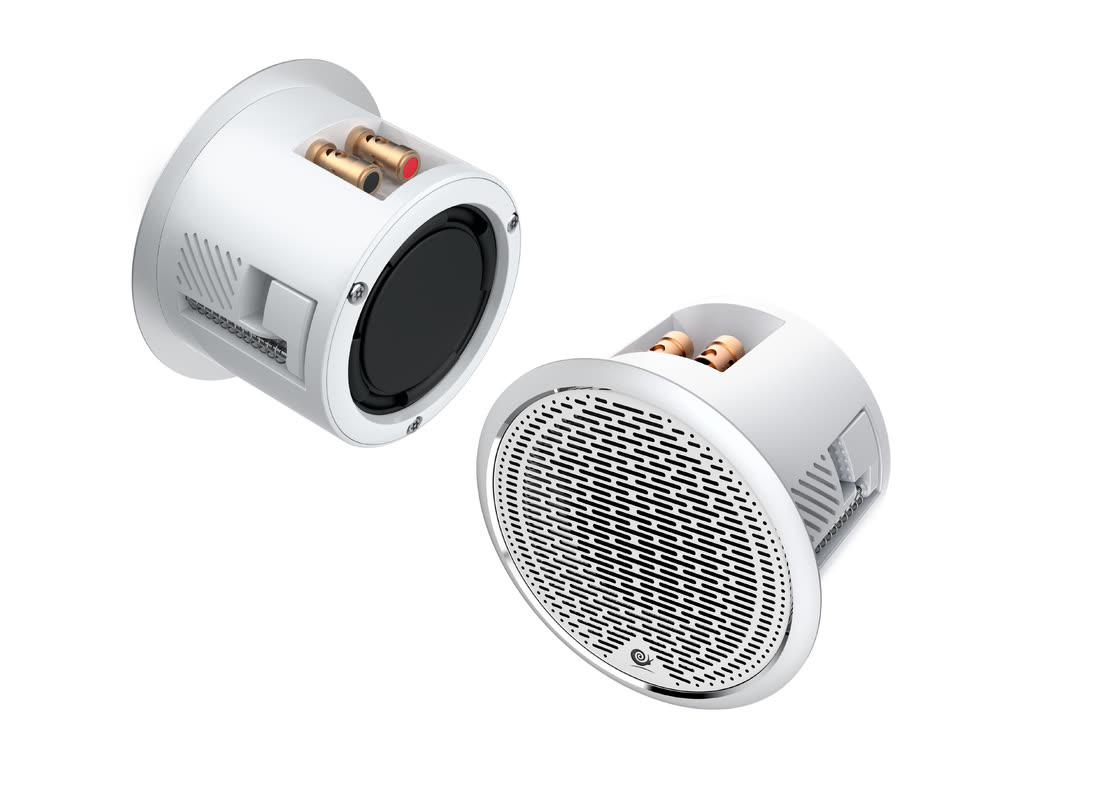

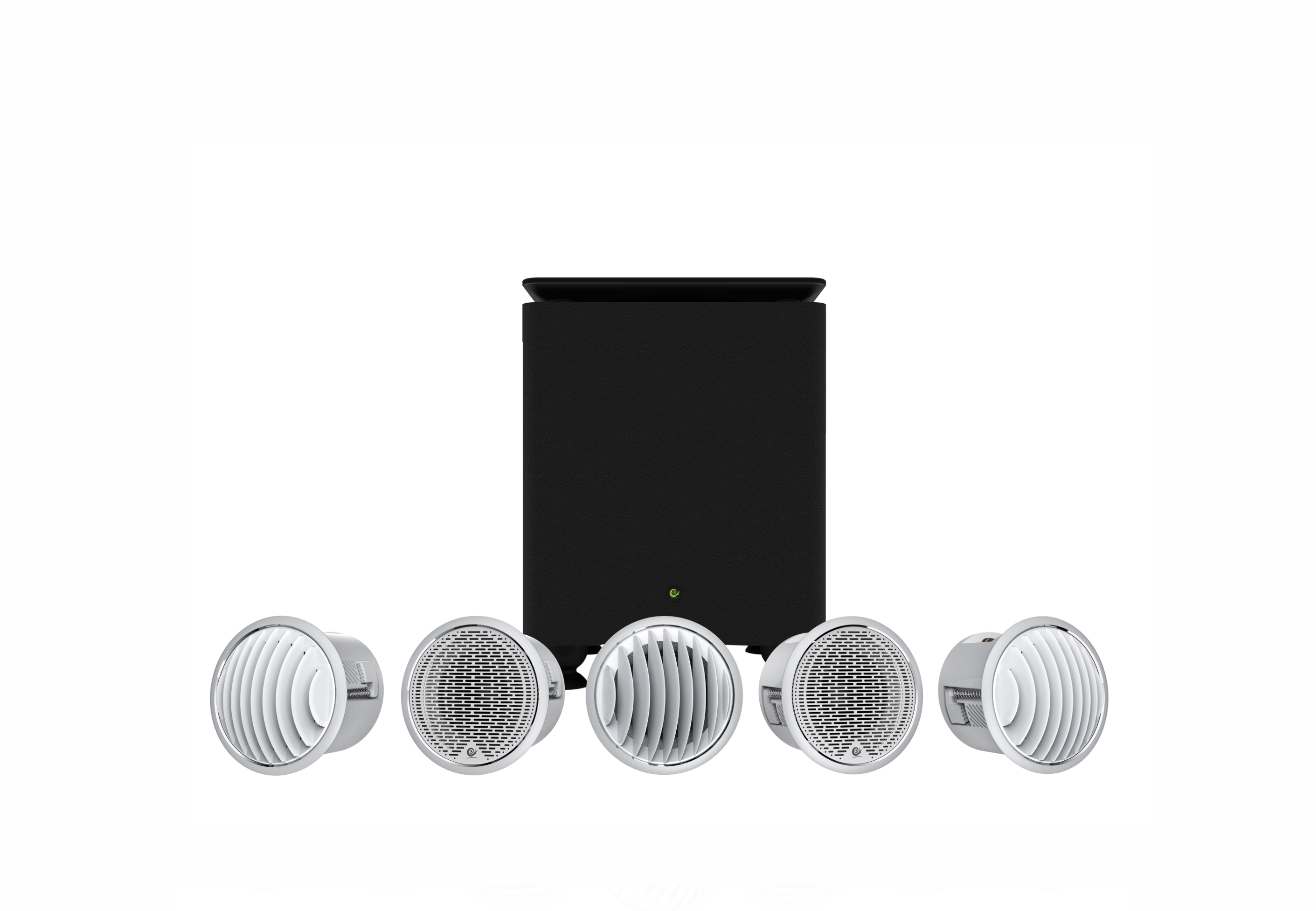

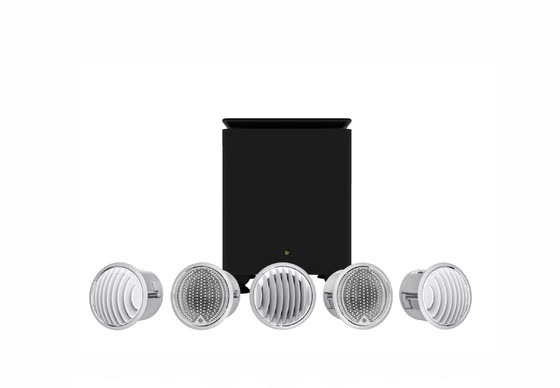

IW3max-S10D: a 5.1 in-ceiling home theater system pairing Snail Power IW3max ultra-slim waveguide invisible speakers (LCR x 3 + surround x 2) with an S10D dual 10-inch 1000W powered subwoofer — the world's thinnest at 7cm, with deep bass and a full cinematic feel.
Downloads for this model
- IW3max Speaker User Manual (Chinese)13.2 MB
- S10D Powered Subwoofer User Manual (English)2026-05-19 · 4.7 MB
- S10D Powered Subwoofer User Manual (Chinese)5.8 MB
- AV-700 III Cinema/KTV All-in-One AV Amplifier User Manual (English)2026-05-19 · 5.8 MB
- AV-700 III Cinema/KTV All-in-One AV Amplifier User Manual (Chinese)18.0 MB
- F60D Wireless Microphone User Manual (Chinese)3.5 MB
Sound Quality Performance
IW3max 是全球最薄的家庭影院音箱，第 4 代 2.5 英寸高端单元架构，最高 110dB 声压 —— 五分之一体积实现落地箱级声压，重新定义紧凑音响。
The IW3max is the world's thinnest home theatre speaker with a 4th-generation 2.5-inch driver, delivering up to 110dB SPL at one-fifth the size of traditional floor-standing speakers.
Drive System and Output Capability
大功率辐射器技术增强低频能量；S10D 双 10 寸 1000W 低音炮让影院低频深潜有力，如临现场。
High-power radiator technology enhances bass energy, and the S10D dual 10-inch 1000W subwoofer delivers deep, impactful cinema bass.
Core Algorithm
第 4 代核心算法与 IW 架构，单只 180W、最大连续声压 110dB —— 高保真、极稳、无失真。
4th-Generation Core Algorithm with IW architecture delivers up to 180W and 110dB maximum continuous output.
Design Aesthetics
全铝箱体配防指纹面漆，导波器与钢网罩一体，现代干净，融入任何室内风格。
All-aluminium housing with an anti-fingerprint finish, pairing a waveguide with a steel-mesh grille.
Unique Technology
7cm 超薄 —— 全球最薄的影院音箱之一，适配吊顶深度受限的场景。
A 7cm ultra-thin profile suits ceilings with limited depth.
Versatile Applications
导波技术配超薄箱体解决隐藏式安装难题 —— 影院、KTV 与室内设计整合成完整方案。
Waveguide technology and an ultra-thin enclosure solve concealed installation for a complete home-entertainment solution.
