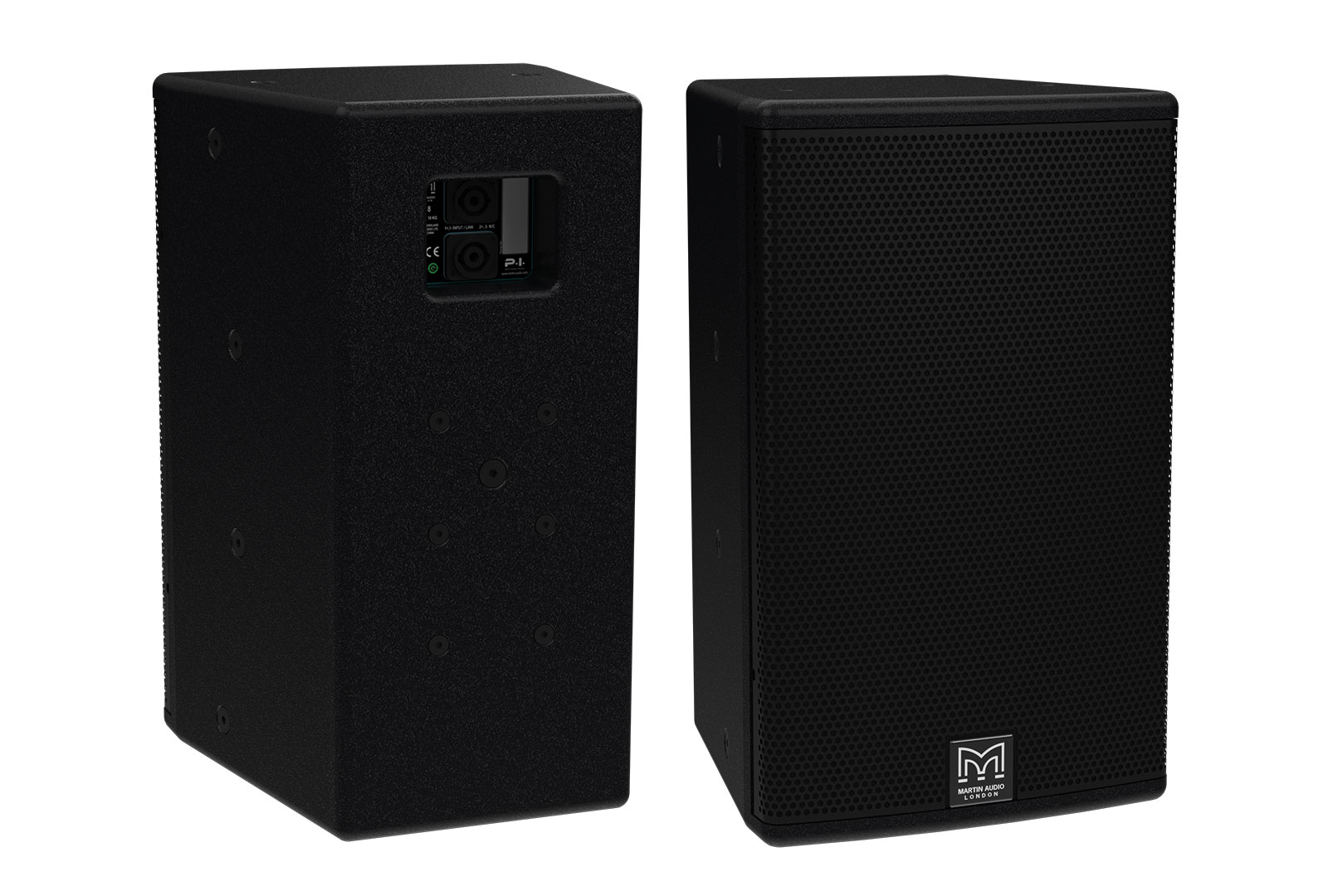

The PI8 is an ultra-compact two-way passive loudspeaker system with an integrated 8” (200mm) /2” (50mm) voice coil LF driver and a 1” (25mm) HF driver. Its very small size belies its high output capability.

Applications

• Education
• Hospitality
• Small performance spaces
• Government
• Public Spaces

• TYPE	Compact, passive two-way system
  FREQUENCY RESPONSE (WITH PRESET)	90Hz - 18kHz ±3dB -10dB @ 62Hz
  DRIVERS	LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver
  RATED POWER	200W (AES), 800W (Peak)
  RECOMMENDED AMP	VIA2502
  SENSITIVITY	92dB
  MAXIMUM SPL	115dB continuous, 121dB peak
  NOMINAL IMPEDANCE	8 ohms
  DISPERSION (-6DB)	90° H x 50° V (user-rotatable)
  CROSSOVER	2.9kHz passive
  ENCLOSURE	Trapezoid
  FINISH	Black textured paint
  PROTECTIVE GRILLE	Black perforated steel with scrim cloth backing
  CONNECTORS	2 x NL4 type
  PIN CONNECTIONS (INPUT	1+/1-
  PIN CONNECTIONS (LINK)	1+/- to 1+/-
  FITTINGS	14 x M8 inserts
  DIMENSIONS	(W) 257mm x (H) 422mm x (D) 261mm (W) 10.12ins x (H) 16.61ins x (D) 10.28ins
  WEIGHT	10kg (22.1lbs)
